Inspect network state

Qubic's live protocol state — balances, epoch, tick, computor set, contract state, revenue routing, and everything else the network agrees on — is queryable. You do not have to trust a website, a screenshot, or a tweet. You can read the state directly.

This page shows you how, using three complementary tools, and walks through one worked example (the revenue-donation table) end-to-end.

Mental model

All three tools query the same on-chain state. What differs is the interface:

• qubic-cli — a command-line binary that speaks the node protocol directly. Best for scripting, automation, and reproducible checks in CI.
• Qubic.Net Toolkit — a graphical desktop application. Best for browsing and one-off inspection when you'd rather click than type.
• HTTP RPC (rpc.qubic.org) — a JSON API over HTTPS. Best for embedding in your own dashboards, websites, or backend services.

You will see the same values in all three, because all three ultimately ask the same node the same question. If the values disagree, one of the tools is stale — not the protocol.

Tools

1. qubic-cli

The command-line client lives at github.com/qubic/qubic-cli. It builds cross-platform (Linux, macOS, Windows) and takes a node IP as its target:

qubic-cli -nodeip <IP> -nodeport 21841 -<command> [args]

Public read-only queries do not require a seed. State-changing operations (transfers, votes, proposals) do.

Run qubic-cli -help for the full command surface, or see the README.md.

2. Qubic.Net Toolkit

A desktop GUI for browsing the network, at github.com/qubic/qubic-net-toolkit (or from the Qubic downloads page). Best for humans; connects to a node over the same protocol qubic-cli uses.

Header shows the currently connected node, epoch, and tick. Left sidebar groups queries by domain (Dashboard, Contracts, Explorer, Tools, Computor Operation, Testing).

3. HTTP RPC

https://rpc.qubic.org exposes a JSON API for the most common queries. Suitable for embedding state into your own web app or dashboard. See API · RPC for the endpoint list.

---

Worked example — the revenue donation table

The revenue donation table is the on-chain routing configuration that decides what fraction of each computor's revenue goes to a set of destination public keys (typically the burn-sink SC or the CCF/QEARN contracts). The table lives in the GQMPROP contract's state and is updated by quorum vote. Its behavior underlies things like "the halving" — a halving is a quorum-approved bump to a millionthAmount field routed to the burn sink.

Every tool below returns the same table.

With qubic-cli

qubic-cli -nodeip <IP> -nodeport 21841 -gqmpropgetrevdonation

Prints the current table as text, one row per entry: destination public key, millionthAmount (in millionths of the incoming revenue), and firstEpoch (the first epoch the entry becomes active).

With the Qubic.Net Toolkit

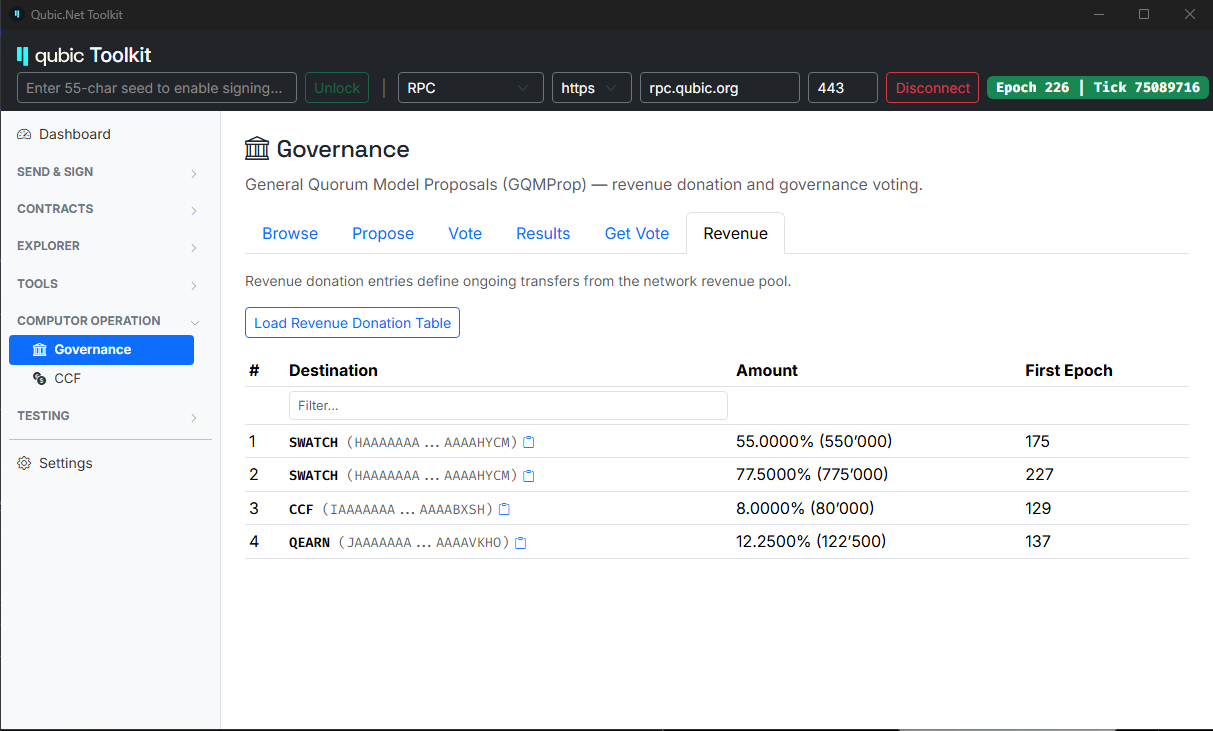

Governance → Revenue tab → Load Revenue Donation Table

The screenshot above is EP226 mainnet. It shows the same four entries you'd get from qubic-cli, plus friendly names for the destination public keys where the toolkit recognizes them (SWATCH, CCF, QEARN).

With HTTP RPC

Any smart-contract function is callable through the generic POST /v1/querySmartContract endpoint. The revenue donation table is GQMPROP.GetRevenueDonation — contract index 6, input type 5, no request body:

curl -X POST 'https://rpc.qubic.org/v1/querySmartContract' \
  -H 'Content-Type: application/json' \
  -d '{
    "contractIndex": 6,
    "inputType": 5,
    "inputSize": 0,
    "requestData": ""
  }'

The response has a responseData field containing the base64-encoded RevenueDonationT struct (see contracts/GeneralQuorumProposal.h for the struct layout). Decode it to get the same rows the CLI and Toolkit show — one 32-byte destinationPublicKey, one 4-byte millionthAmount, one 2-byte firstEpoch per entry.

For details on the endpoint pattern (base64 in/out, error handling), see API · RPC.

With the TypeScript SDK

The @qubic.org/contracts package ships generated helpers for every core contract. GQMPROP.GetRevenueDonation is available as a one-line call — no manual base64 or byte offsets to manage:

import { qubicRpc } from '@qubic.org/rpc'
import { generalQuorumProposalGetRevenueDonation } from '@qubic.org/contracts'

const rpc = qubicRpc({ baseUrl: 'https://rpc.qubic.org' })
const result = await generalQuorumProposalGetRevenueDonation(rpc.live)

if (result.ok) {
  // result.value.data is the decoded RevenueDonationT byte payload —
  // 128 entries × 42 bytes each (pk[32] || millionthAmount[8] || firstEpoch[2]).
  // Loop until you hit a zero destinationPublicKey (empty slot).
  console.log(result.value.data)
}

With the .NET SDK

Qubic.Net generates typed clients per contract. GetRevenueDonation returns a strongly-typed Entries[] — you get named fields directly, no byte parsing:

using Qubic.Core.Contracts.Gqmprop;
using Qubic.Rpc;

var client = new QubicRpcClient("https://rpc.qubic.org");

var result = await client.QuerySmartContractAsync<GetRevenueDonationInput, GetRevenueDonationOutput>(
    GqmpropContract.ContractIndex,
    GqmpropContract.Functions.GetRevenueDonation,
    new GetRevenueDonationInput());

foreach (var entry in result.Entries)
{
    if (entry.DestinationPublicKey.All(b => b == 0)) break; // empty slot marks end
    Console.WriteLine(
        $"→ dest={Convert.ToHexString(entry.DestinationPublicKey)[..12]}… " +
        $"{entry.MillionthAmount / 10_000.0:F2}% " +
        $"(firstEpoch: {entry.FirstEpoch})");
}

For both SDKs, the underlying wire call is the same POST /v1/querySmartContract you saw above. The SDKs handle base64 encoding, byte offsets, and struct layout for you — that's their whole job.

How to read the result

Each entry has three fields:

Field	Meaning
destinationPublicKey	Where the routed portion of revenue goes (usually a smart-contract public key)
millionthAmount	Fraction (in millionths — 1_000_000 = 100%) of the remaining revenue that gets routed here
firstEpoch	The epoch this entry becomes active

Entries are applied sequentially at each epoch's end, per computor: each entry takes its millionthAmount / 1_000_000 fraction of what remains after previous deductions. What's left after all entries have been applied is what the computor receives.

An entry with firstEpoch > currentEpoch is stored on-chain but not yet applied — it's a future change, already ratified by quorum. When the network reaches that epoch, the entry activates and any older entry with the same destinationPublicKey is automatically removed (see _CleanupRevenueDonation in contracts/GeneralQuorumProposal.h).

---

Other common queries

The same "same-state-different-interface" pattern applies across every read-only query. A few of the most commonly used:

What you want	qubic-cli command	Toolkit path
Balance of an identity	-getbalance <IDENTITY>	Dashboard / Explorer
Assets held by an identity	-getasset <IDENTITY>	Explorer → Assets
Current computor list	-getcomputorlist <FILE>	Explorer → Computors
Tick data (all txs in a tick)	-gettickdata <TICK> <FILE>	Explorer → Tick
Transaction lookup	-gettxinfo <TX_ID>	Explorer → Transaction
Contract fee reserve	-qutilqueryfeereserve <IDX>	Contracts → Fee reserves
Revenue donation table	-gqmpropgetrevdonation	Governance → Revenue
Peer network	-getnodeiplist	Settings → Network

For the exhaustive list, qubic-cli -help is authoritative; the toolkit exposes most of the same queries through its sidebar.

When answers disagree between tools

Three usual causes:

1. Different nodes. If qubic-cli and the toolkit are pointed at different node IPs, they may briefly see different values (typically for at most one or two ticks — Qubic's finality is per-tick).
2. Stale toolkit connection. Reconnect the toolkit; it caches the connection but does not always auto-refresh derived tables.
3. Newer future-epoch entries. Some tables (like the revenue-donation table) contain entries with a firstEpoch in the future. Tools may render them differently — some show only currently-active entries, some show the full table including future entries. Look at the firstEpoch column.

Never assume a tool is wrong before checking against a second tool. When they agree, the state is the state.
